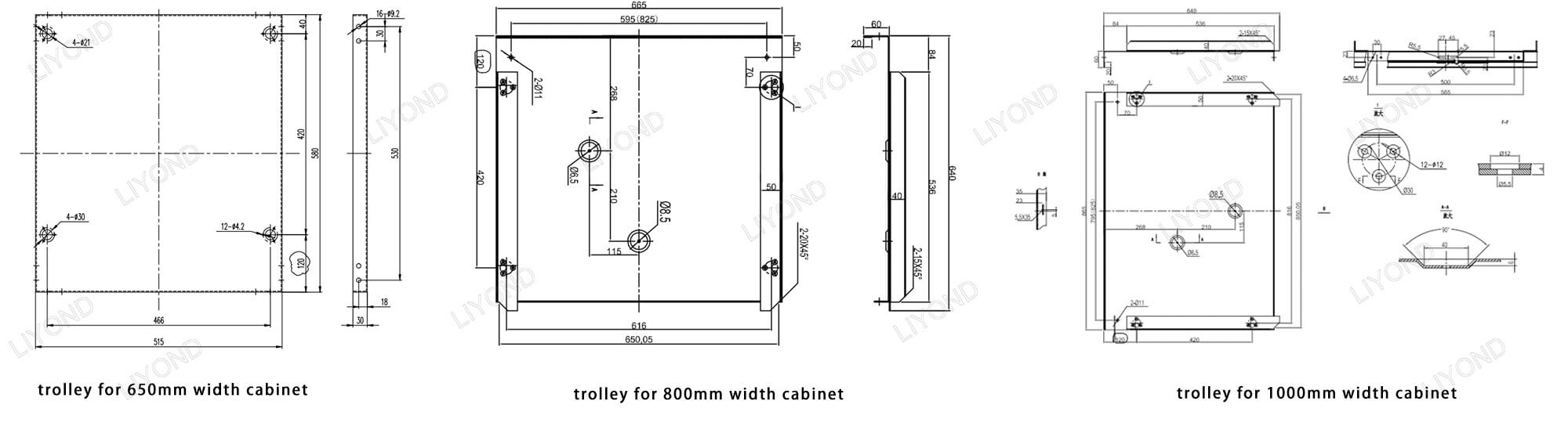

VS1 Vacuum Circuit Breaker Transfer Trolley High Voltage Cabinet Trolley 650mm 800mm 1000mm wide

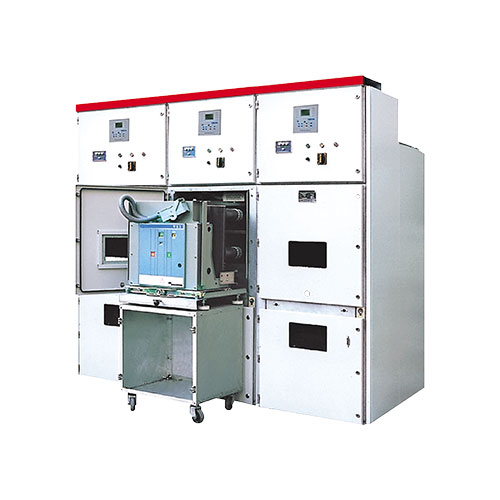

The circuit breaker transfer trolley is a work trolley that pulls or pushes the circuit breakers out of the breaker room in the transfer switchgear. When the circuit breaker is to be pushed into the breaker room, the breaker needs to be placed on the shelf of the transfer trolley and pushed by hand to the breaker room; if the breaker is to be pulled out, the breaker transfer trolley is docked with the switchgear and the breaker is pulled out manually, and the breaker is pulled to the breaker transfer trolley by the movement of the rollers on the breaker chassis trolley and then processed for maintenance.

Advantages of the transfer trolley:
1. Easy operation
Simplified installation and removal: The transfer trolley is designed to facilitate the easy movement of the vacuum circuit breaker into the switch cabinet and can be quickly installed or removed. This greatly simplifies the operation process and reduces downtime.
Precise positioning: The trolley is usually equipped with a positioning device to ensure that the circuit breaker can be accurately aligned with the connection point of the switch cabinet, improving the safety of installation and operation.
2. Improved safety
Electrical isolation: When maintaining or replacing the circuit breaker, the transfer trolley can completely isolate the circuit breaker from the switch cabinet to prevent operators from contacting live parts, thereby improving safety.
Preventing misoperation: Many transfer trolleys are equipped with interlocking devices to prevent the circuit breaker from closing when it is not properly in place, thereby avoiding equipment damage or personal accidents.
3. Easy maintenance
Simplified maintenance: The transfer trolley makes the inspection and maintenance of the vacuum circuit breaker more convenient. The operator can easily move the circuit breaker out of the switch cabinet for inspection and repair without complicated tools and operations.
Quick replacement: When a circuit breaker needs to be replaced, the transfer cart can speed up the process, reduce power outage time, and improve the operating efficiency of the power supply system.
4. Enhanced flexibility
Multi-purpose design: Some transfer carts can be used for different types of circuit breakers or in different switch cabinets, increasing the flexibility and scope of application of the equipment.
Emergency operation: When a power system fails, the transfer cart can quickly remove the damaged circuit breaker and replace the spare circuit breaker to ensure that the system is quickly restored to operation.
5. Save space
Compact design: The transfer cart usually has a compact design and takes up less space, which is conducive to the efficient use of the internal space of the switch cabinet, and is also convenient for transportation and storage.
6. Reduce labor costs
Reduce manpower requirements: The design of the transfer cart allows operators to complete the installation, removal and transportation of circuit breakers independently or with a small amount of assistance, reducing the reliance on a large number of people and saving labor costs.
