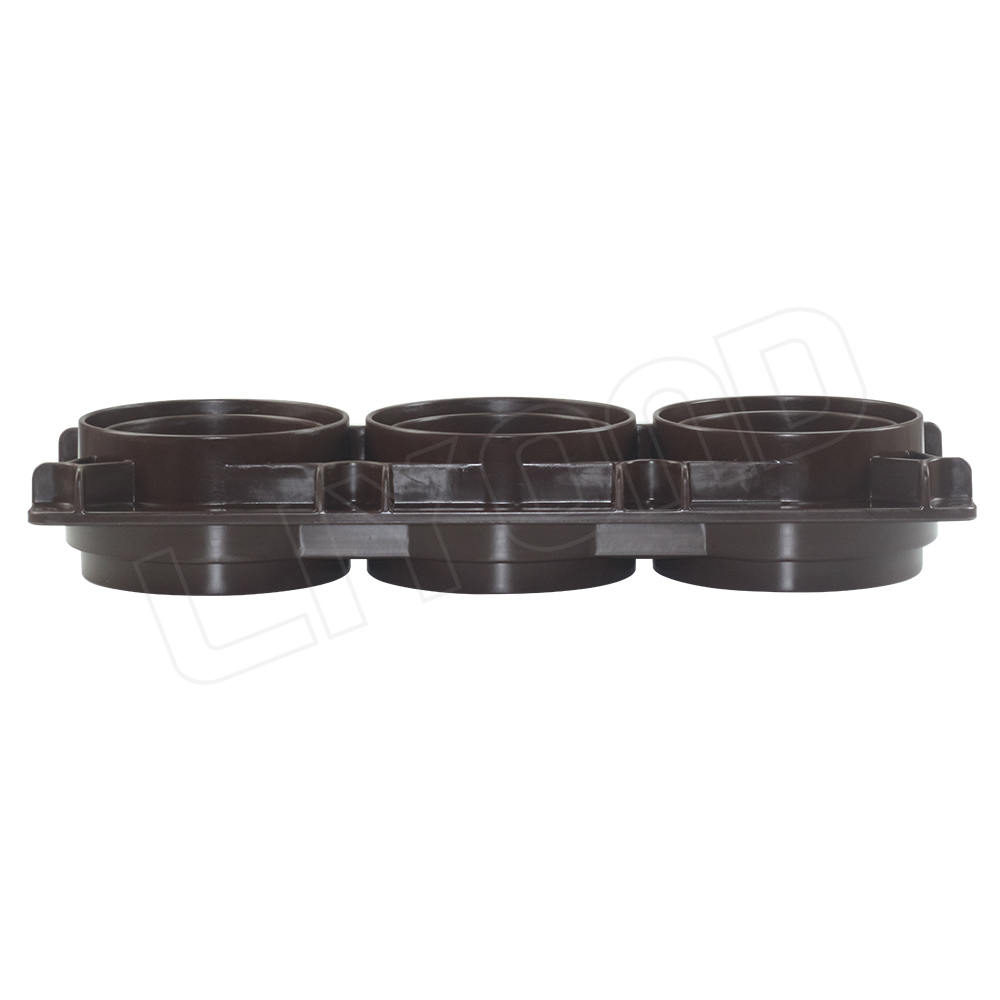

TGZ01-17.5 Casting Epoxy Resin Wall Feed Through Busbar Bushing

TGZ01-17.5 is a cast epoxy resin combined bushing busbar wall crossing device used in medium and high voltage power equipment. This equipment is usually used in substations and industrial distribution systems to achieve insulation and sealing functions when cables or busbars pass through walls.

Main features
1.Epoxy resin material: high-strength epoxy resin material is used, with excellent electrical insulation performance and mechanical strength.
2.Combination design: modular combination design, easy to install and maintain, to meet different installation requirements.
3.High reliability: arc resistance, aging resistance, long service life, low maintenance cost.
4.Environmental adaptability: Able to work in harsh environmental conditions, such as high humidity, high salt spray, etc.

Application scenarios
Substation: Busbar or cable wall crossing for high-voltage switchgear, transformers and other equipment.
Industrial power distribution system: In environments such as factories or mines, the busbar or cable can be insulated through the wall.
Power plant: Power output and distribution system for power generation equipment.

Installation and maintenance
Installation: Before installation, check that the equipment is intact. During installation, follow the installation manual provided by the manufacturer to ensure good sealing and insulation.
Maintenance: Regularly check whether the surface of the casing has cracks, deformation or aging, keep the surface clean, and avoid dust accumulation and pollution.

Technical parameters
Rated voltage 17.5kV
Short-time power frequency withstand voltage: 38kV/1min;
Lightning impulse withstand voltage: 95kV;
Minimum ambient temperature -5℃
Mechanical strength: Epoxy resin material has high mechanical strength and can withstand certain mechanical stress.

Dimensions for reference
