1. Adopts epoxy resin automatic pressure gel craft that be APG craft manufacture. Product beautiful, Machine, Electrical performance fit.
2. Adopts high toughness epoxy resin manufacture , Machine capability excellent, And adopts low reaction activity recipe system , Material solidifies slow , Product body stress low. Maximum field enhances product machine capability.
3. Adds activated silica slight powder, further enhance epoxy resins machine capability, Much ensures insulate long-term keep good electric insulate performance under wet work environment.
4. Adds organic color, Product color and luster bright, Does not reduce product insulate performance
Working conditions
1.Altitude: ≤1000m
2.Ambient temperature at -30℃ to +40℃, the daily average temperature should not more than 30℃
3.The daily average of relative humidity is less than 95%, the average monthly is less than 90%.
4.Working environment should be without steam, gas, chemical corrosive deposition, salt fog, dust, dirt and other dangerous explosive media, which will severely impact on insulation and conductivity of products.
5.Working environment should not be regular vibration or serious bumps
| Product name | Bending plate |
| Product model | LYW101/LYW102 |
| Dimension | 583*540 mm |
| Material | Epoxy resin |
| Rated voltage | 40.5kV |
| Rated current | 630A-4000A |
| Application | KYN61C-40.5KV Indoor HV switchgear fittings |

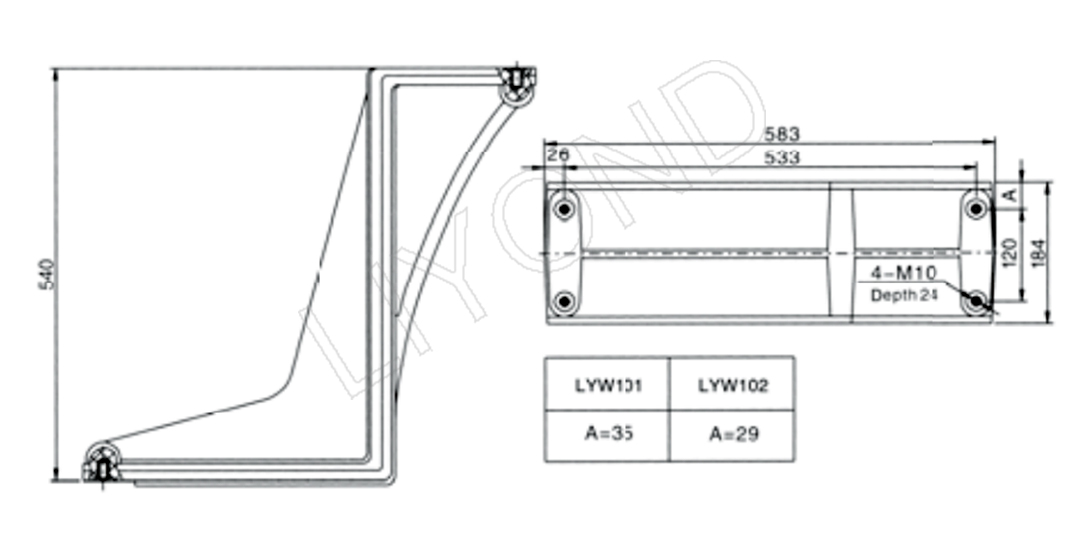

Dimensional drawings of bent plates LYW101/LYW1102
