Insulator is a special insulation control, also known as supporting insulators, which acts as a support wire and prevents current from returning to the ground, increasing the creepage distance.
Epoxy resin insulator, which belongs to composite insulator, is made of epoxy resin material. It has the advantages of high strength, excellent corrosion resistance, ex cellent electrical performance and high safety performance. Insulators sold by our company are mainly used in high voltage switchgear.
Mainly used in busbar rooms or overhead transmission lines.
Features
1. Epoxy resin cast insulators, sensor, connect with charged display device, used in switchgear application.
2. Made of epoxy resin, it is finished through complicated process.
3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supply the best quality product
4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.
5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.
Working conditions
1.Altitude can’t exceed 1000m, and the altitude of plateau type can’t exceed 3000m；
2.Surrounding temperature ranges from -10℃ to +40℃，and the daily average temperature;
3.Daily average value of Relative humidity can’t exceed 95%，and the monthly average;
4.There is no any dust, smoke, pollution of corrosive or flammable air,vapor and salt fog;
5.There is no any frequent vibration or bumping in installation place;
6.The product all could run in the case of dew and Ⅱ feculence condition
| Product name | Insulator |
| Product model | LYC330 |
| Material | Epoxy resin |
| Rated voltage | 24kV |
| Height | 210-260 |
| Craft | The Automatic Pressure Gelation (APG) |

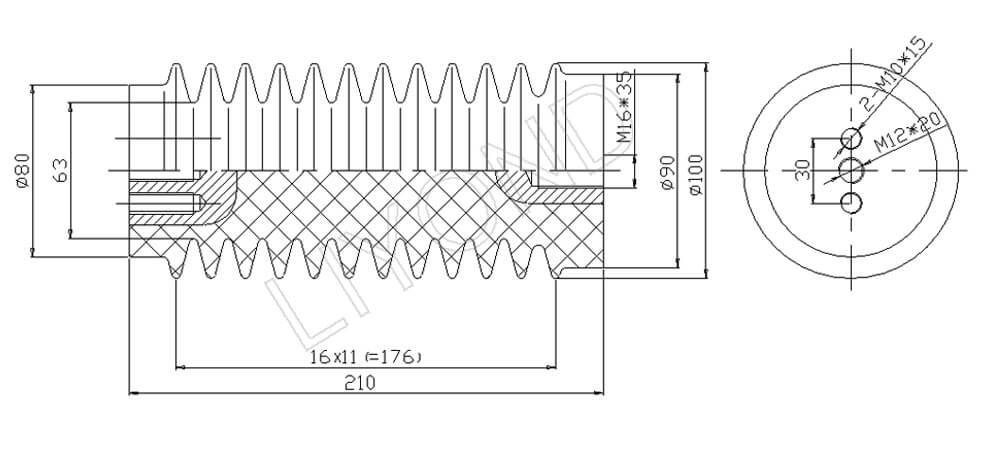

Drawing
