40.5kV epoxy resin insulator is an insulating device specially designed for use in high-voltage power systems with a rated voltage of 40.5kV. It is usually made of epoxy resin material to ensure effective electrical insulation and mechanical support under high voltage conditions.
Features
1. Excellent insulation performance:
Epoxy resin material has high dielectric strength and low dielectric loss, which can provide reliable insulation performance under high voltage environment to prevent current leakage and short circuit.
2. High voltage resistance:
Designed for 40.5kV high voltage applications, it can withstand the electrical stress of high voltage power systems and ensure the safety and stability of power transmission.
3. High mechanical strength:
Epoxy resin insulators have good mechanical strength, can support the weight of power lines and equipment, and resist external mechanical shock and vibration.
4. Environmental resistance:
Epoxy resin material has excellent anti-aging, UV resistance and corrosion resistance, and is suitable for various harsh environmental conditions such as high humidity, pollution and extreme temperature.
5. Good anti-fouling performance:
The surface of epoxy resin insulators is smooth and not easy to accumulate dirt, which can effectively prevent surface flashover and pollution flashover accidents, and reduce the frequency of maintenance and cleaning.
6. Flexible design:
Epoxy resin insulators can be customized according to different application requirements, meet various shapes and sizes, and are suitable for a variety of power equipment and scenarios.
7. Light weight:
Compared with traditional porcelain insulators, epoxy resin insulators are lighter, easier to transport, install and maintain, and reduce construction costs.
8. Heat resistance:
Epoxy resin materials can still maintain good mechanical and electrical properties at high temperatures and are suitable for applications in high temperature environments.
Applications
1. High-voltage transmission lines: used to support and insulate high-voltage transmission lines to prevent current leakage and short circuits.
2. Switchgear: used in high-voltage switchgear to provide insulation and mechanical support.
3. Substation: used for insulation and support of substation equipment to ensure the safe operation of power equipment.
4. Power transformer: used for insulation and support in transformers to prevent electrical failures.
| Product name | Insulator |
| Product model | LYC130 |
| Material | Epoxy resin |
| Rated voltage | 40.5kV |
| Height | 320-380mm |
| Craft | The Automatic Pressure Gelation (APG) |

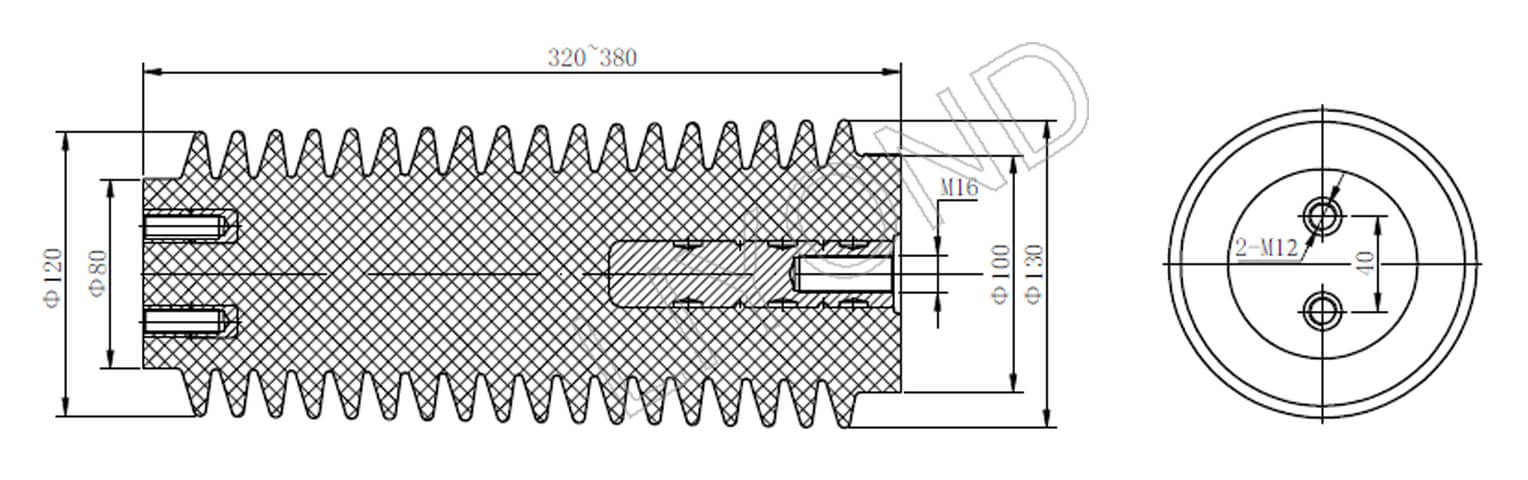

insulator drawing
