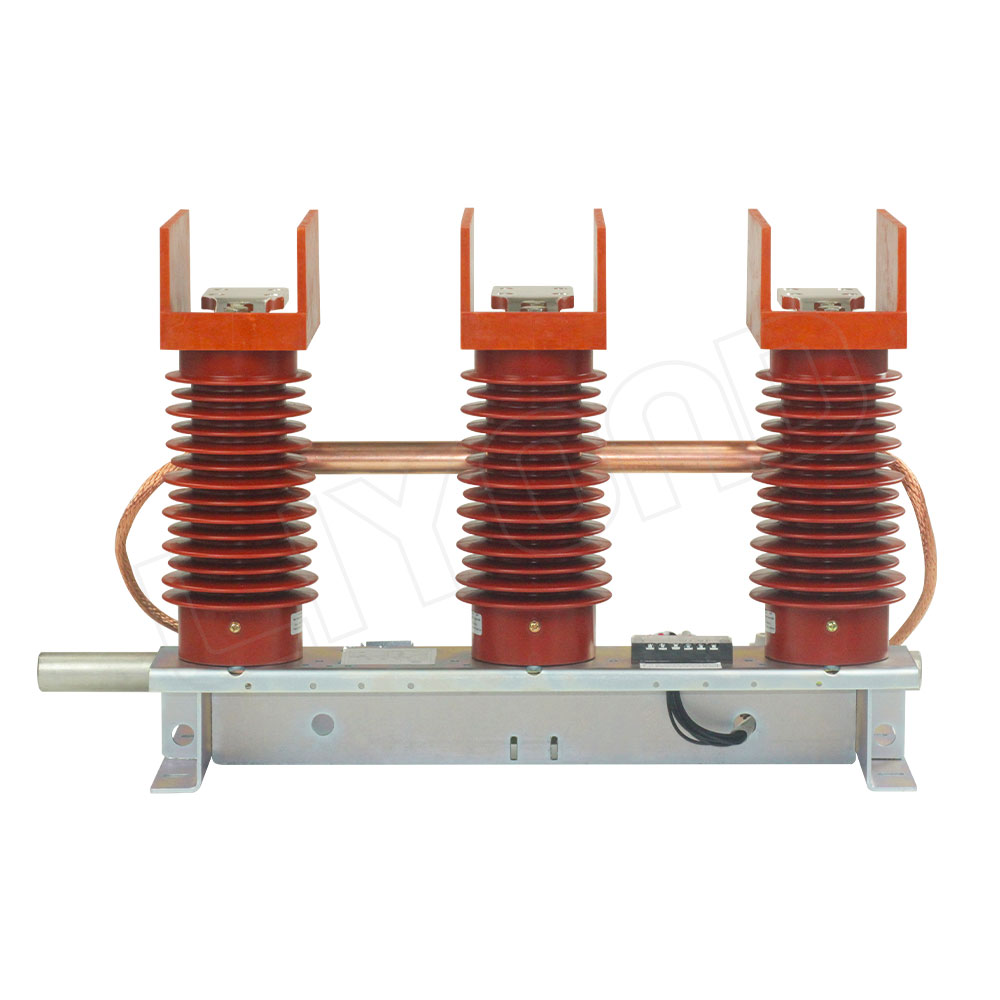

JN15-24 Indoor AC High Voltage 24kV Ground Switch High Speed Earth Knife With Insulation Cover

JN15-24/31.5 indoor AC high voltage earthing switch is an advanced level product with high-tech parameters performance. After comprehensive evaluation, it conforms to GB1985 and IEC62271 standard, applies to power system of 24kV and three-phase AC 50Hz. It owns short-circuit making capacity to protect other electric equipment not being damaged. Can be used with various high voltage switchgear, also play a protective role in the high-voltage electrical equipment overhaul.

Earthing switch use resin insulators, on which live parts, made of silver-plated electrolytic copper (99.9%), are placed. The blades are directly connected to the drive shaft. Contact elements are overdimensioned according to the requirements in order to guarantee, together with a high contact pressure between blades and contacts, a reduced ohmic resistance at the contact surface and a minimum metal wear-off during the life of the grounding switch, with the necessary robustness to withstand thermal and mechanical stresses under short-circuit conditions.

JN15-24/31.5 Indoor AC high voltage earthing switch Product features

1. Indoor AC high voltage earthing switch is Advanced design and steady performance.

2. Simple structures, installation and adjustment.

3. Fast breaking and making capability.

4. Handsome appearance and delicate manufacture craft.

5. Usable and scientific apparatus, be operated on both sides(right and left).

Ambient condition

1. Altitude: ≤1000m;

2. Ambient temperature: -25°C~+40°C;

3. Earthquake intensity: ≤8 degree;

4. Relative humidity: daily average ≤ 95%, monthly average ≤ 90%

5. Pollution degree: II

LYE104 (JN15-24/31.5)

Outline Dimension Drawing
