High Voltage GIS Circuit Breaker (With isolation with grounding) For Gas Insulated Switchgear

Model: GIS circuit breaker
  • General
  • Technical parameter
  • Use of environmental conditions
  • Drawing
  • Application

The GIS circuit breaker is used for gas insulated switchgear, uses splint structure. Its easy to install, reliable breaking performance, long mechanical life and no maintenance. It is substitute for vacuum circuit breaker used in inflatable cabinet. The product performance met standard of GB1984-2014 <High Voltage AC Circuit Breaker> E2-M2-C2 circuit breaker requirement.

No. Item Unit Data
1 Rated voltage kV 12
2 Rated Frequency Hz 50
3 Rated Current A 630
4 Rated Short Time Withstand Current kA 20/25
5 Rated Peak Withstand Current kA 50
6 Rated Short Circuit Duration s 4
7 Rated Short Circuit Making Current kA 50
8 Operation Time Times 10000
9 Main circuit resistance μΩ ≤60
10 1min power frequency withstand voltage kV 38(in air)

1.The altitude should not exceed 2000m and the seismic rift should not exceed 8 degrees;
2.The ambient temperature of the product is -30°C ~ +40°C, the relative humidity is not more than 95% on a daily average and not more than 90% on a monthly average;
3.The product is not suitable for use in installation sites with frequent and severe vibration, water vapour, gas, chemically corrosive deposits, salt spray, dust and dirt, as well as fire and explosion hazards.

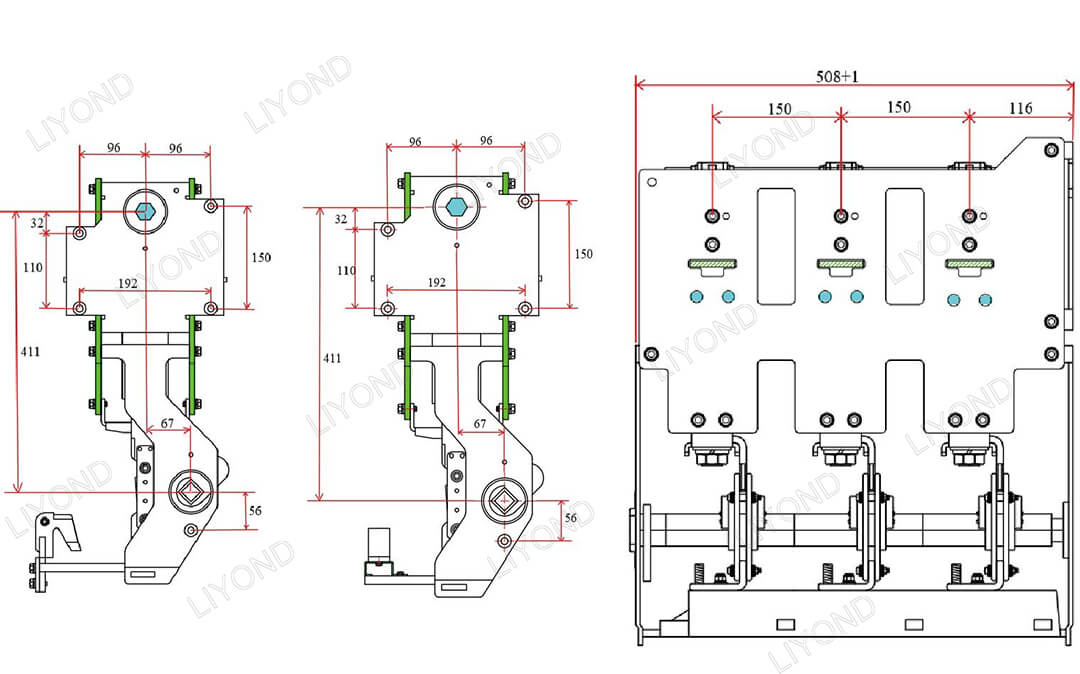

GIS circuit breaker drawing

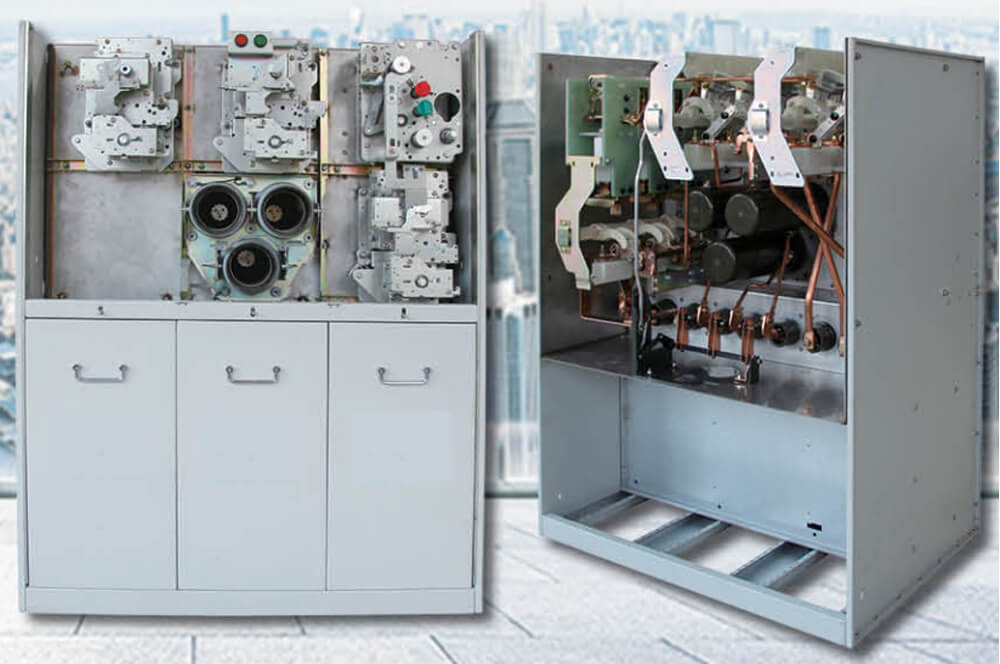

Circuit breakers in gas insulated switchgear
