If internal arcing occurs, the housing has an internal structure weak point, it will be rushed to open, followed by the cabinet above the shutter release arc red open air overpressure stream-oriented outside the cabinet, ensure that the switch cabinet security checks.

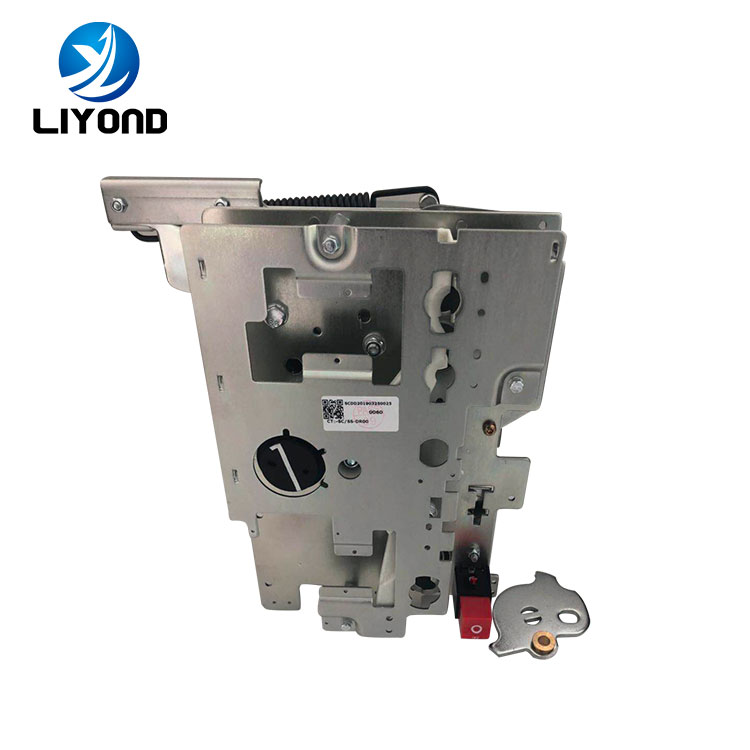

Load break switch sets closing, opening, earthing three at one, filled with SF6 gas encapsulated in epoxy resin housing, three-position interlock, have compact structure.
Small size, light weight, maintenance-free, easy and safe to operate.
| No | Item | Unit | Data | |
| 1 | Rated voltage | kV | 40.5 | |
| 2 | Rated frequency | Hz | 50 | |
| 3 | Rated current | A | 630 | |
| 4 | 1min power frequency withstand voltage | wet | kV | 95 |
| dry | 95 | |||
| 5 | Lightning impluse withstand voltege | kV | 185 | |
| 6 | Rated short circuit breaking current(peak) | kA | 20 | |
| 7 | Rated activeload and close circuit breaking current | A | 630 | |
| 8 | Rated trasferring current | A | 630 | |
| 9 | Rated short circuit making current(peak) | kA | 63 | |
| 10 | Rated cable(line) charging beraking current | A | 10 | |
| 11 | Cable charge breaking current in earthing fault | A | 30 | |
| 12 | Rated withstand current(peak) | kA | 63 | |
| 13 | Short time withstand current(2s) | kA | 25 | |
| 14 | Mechanism life | time | 5000 | |
