Ambient Temperature: Not higher than +40°C and not lower than -40°C.
Altitude: Does not exceed 3000 meters.
Humidity: Relative humidity not exceeding 90% at +25°C.
Vibration and Shock: Suitable for environments without severe vibration or oscillation.
Explosion and Pollution-Free Environment: Free from explosive hazards, conductive dust, and corrosive gases that may damage insulation or metal components.

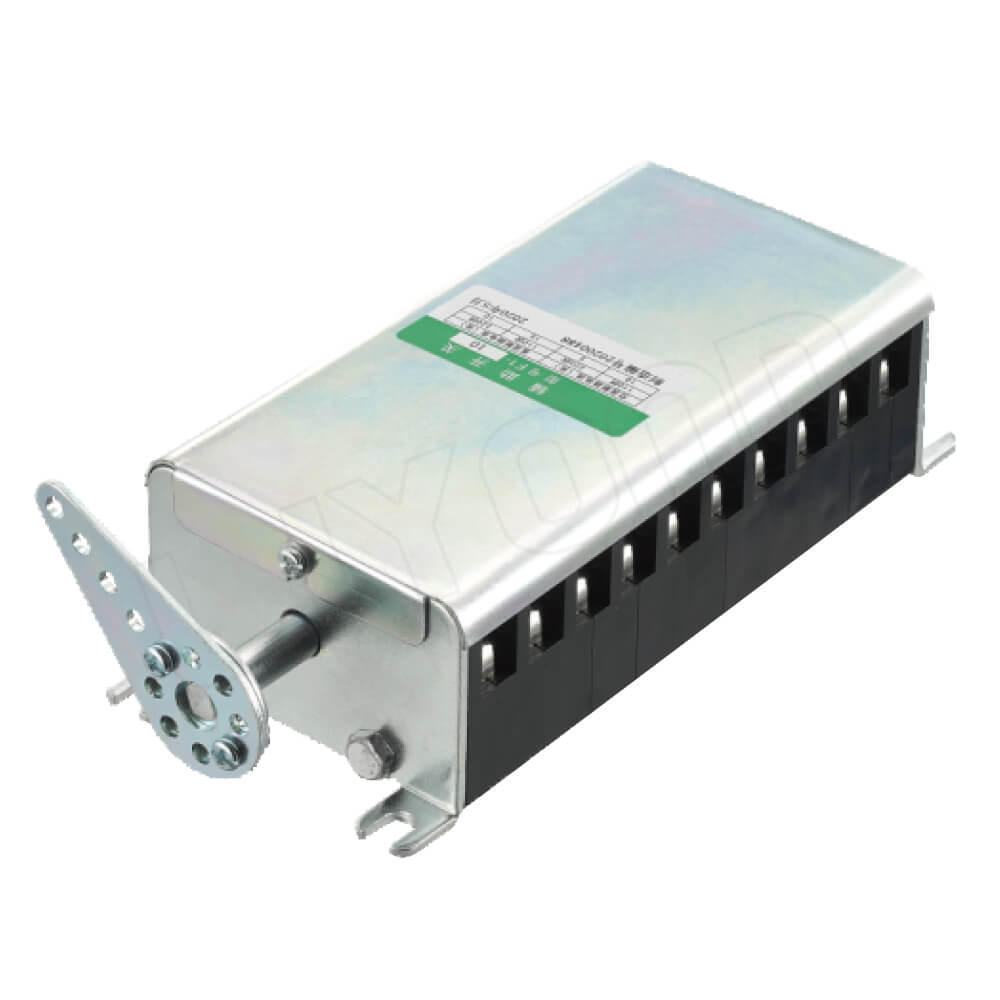

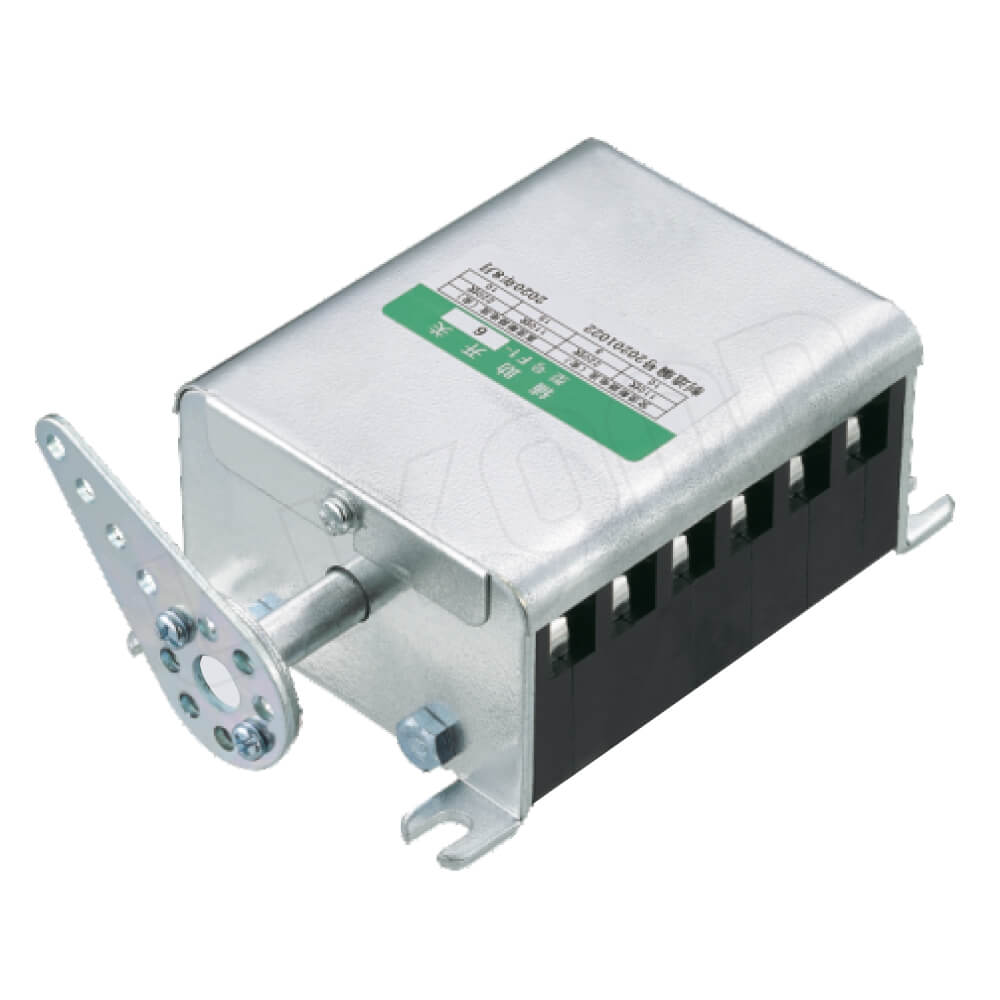

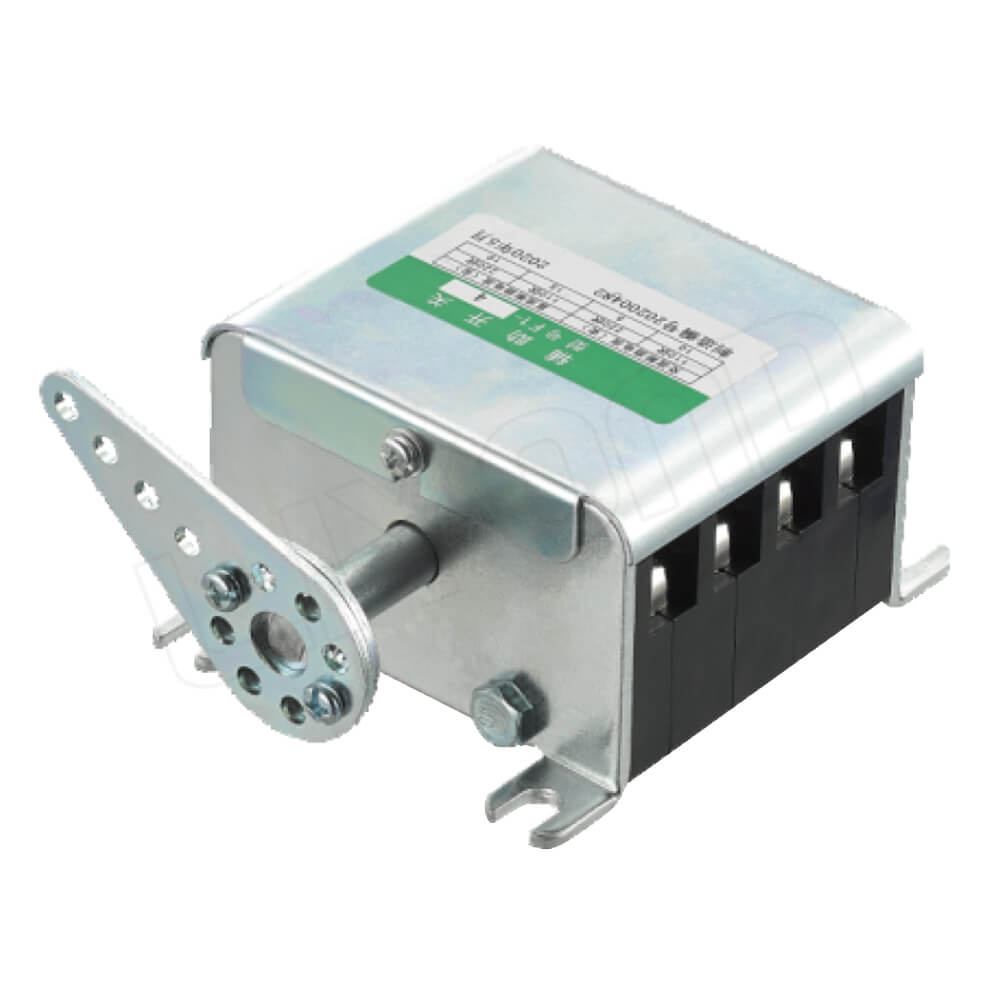

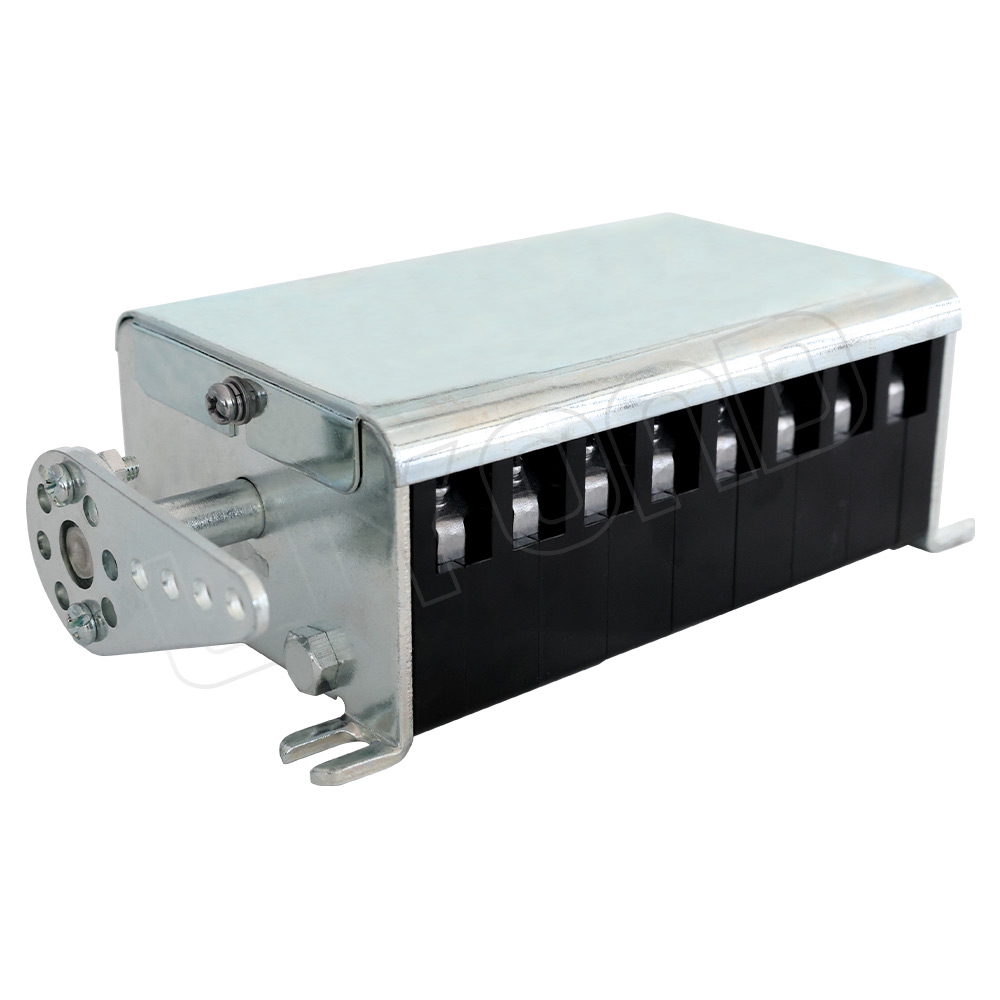

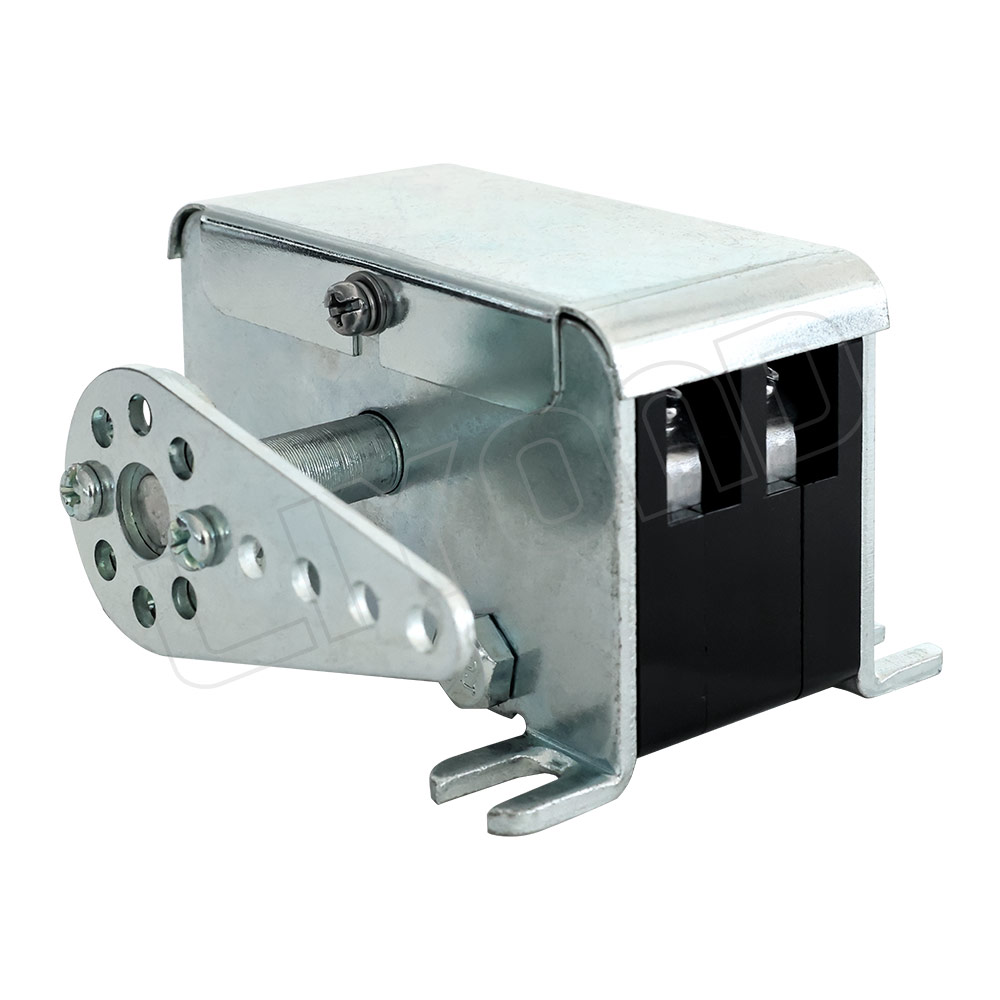

Mechanism of F1 Series Auxiliary Switch
| Rated voltage | Rated current | Rated voltage | Rated current |
| 380V | 10A | 220V | 3A |

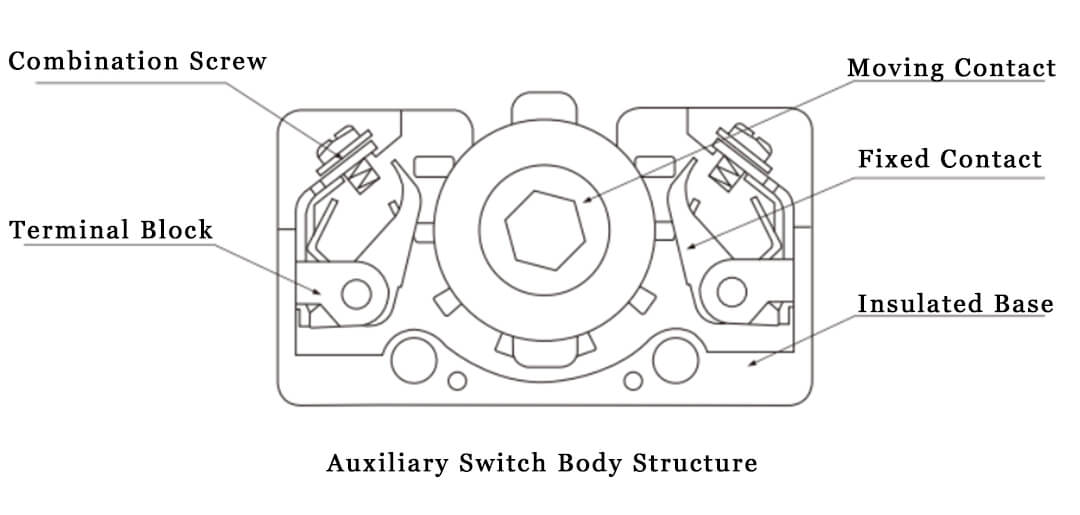

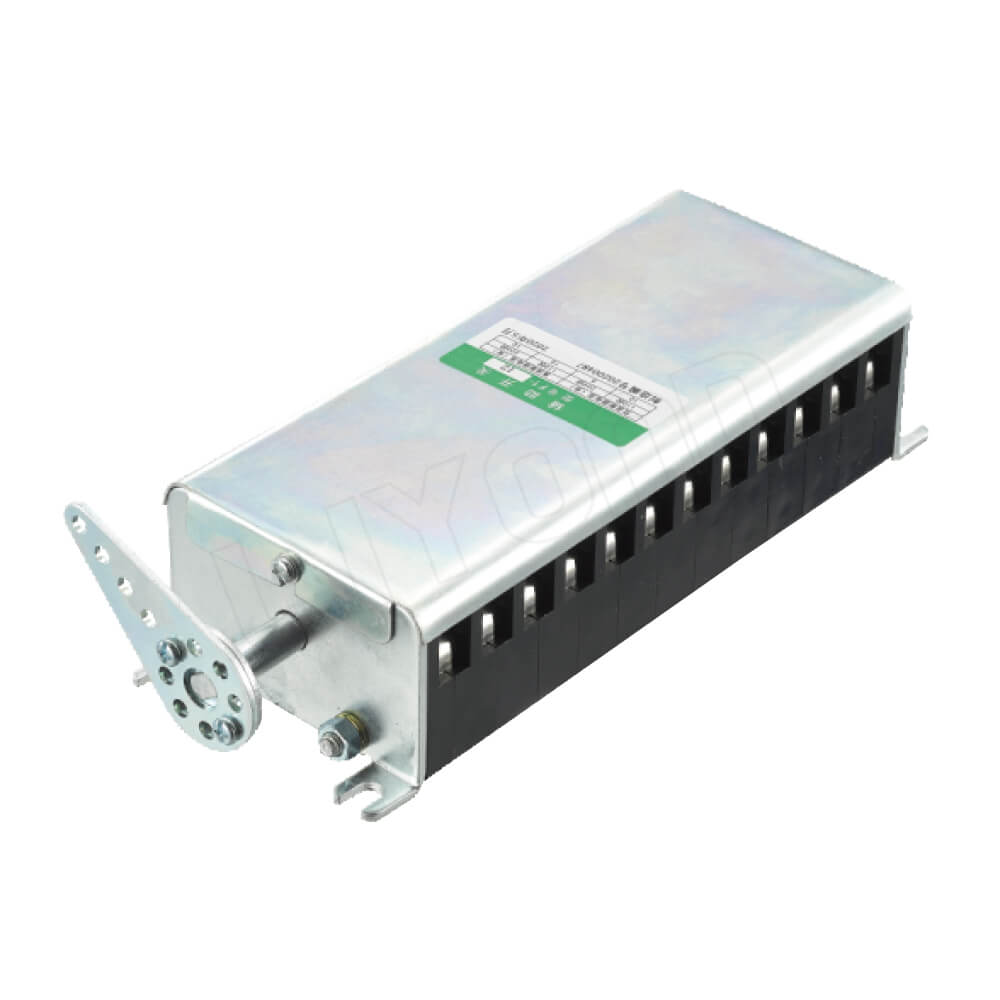

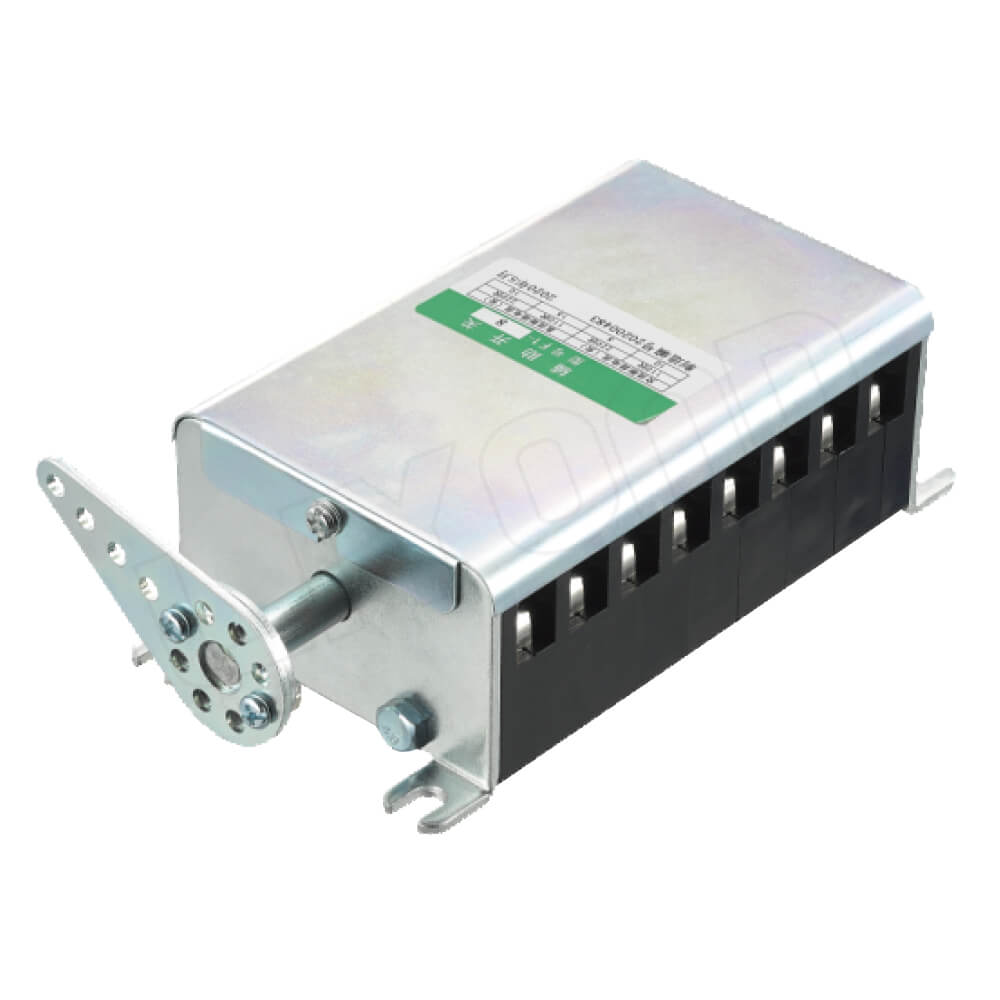

Structural Design of F1 Series Auxiliary Switch
Rotational Angles:
The rotation angle of the central moving contact can be adjusted based on different application requirements, with available angles of 60°, 90°, and 120°.
Installation Methods:
Horizontal Type: Suitable for horizontal mounting.
Vertical Type: Suitable for vertical mounting.
Contact Structure:
Direct-Acting Contacts: Operate immediately upon activation.
Delayed Contacts: Provide a time delay before switching.

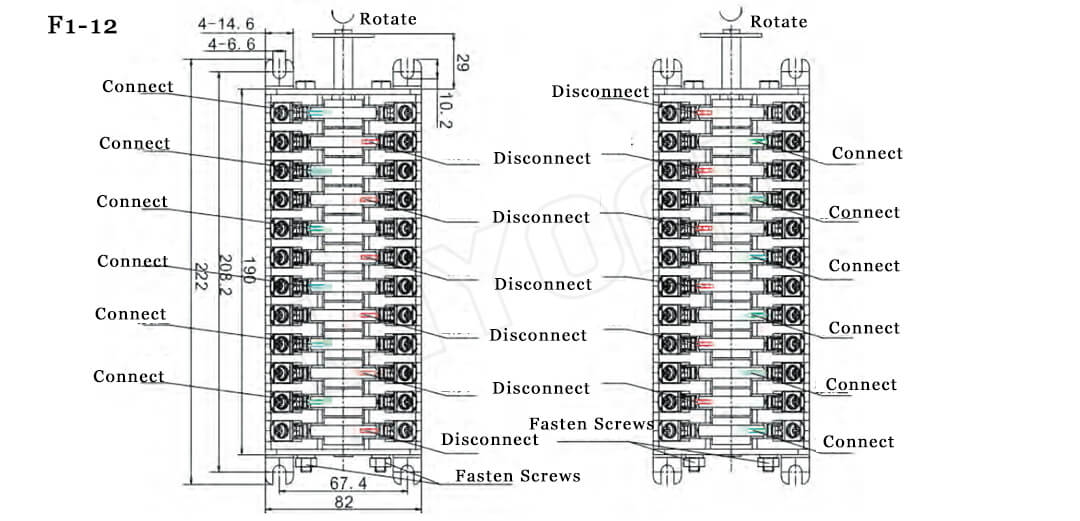

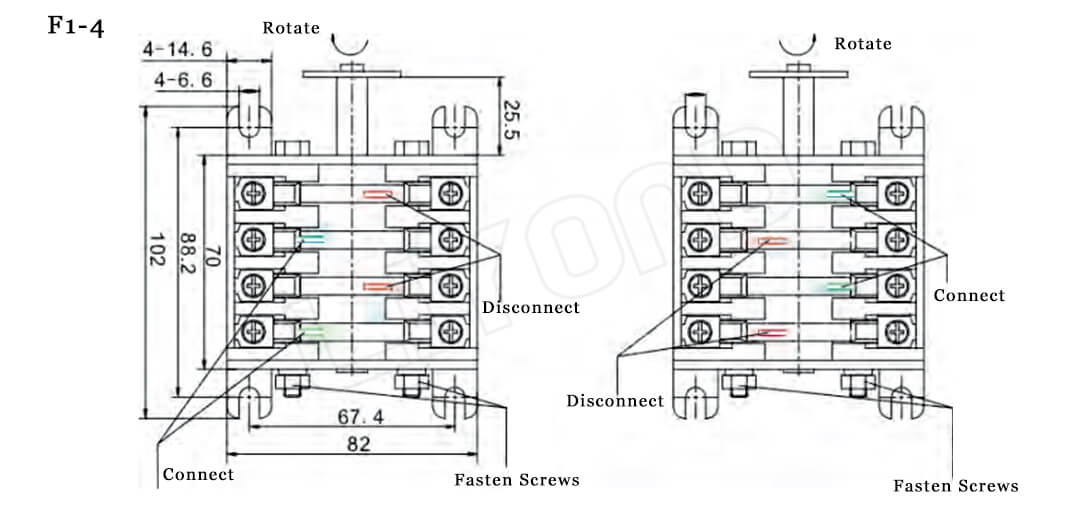

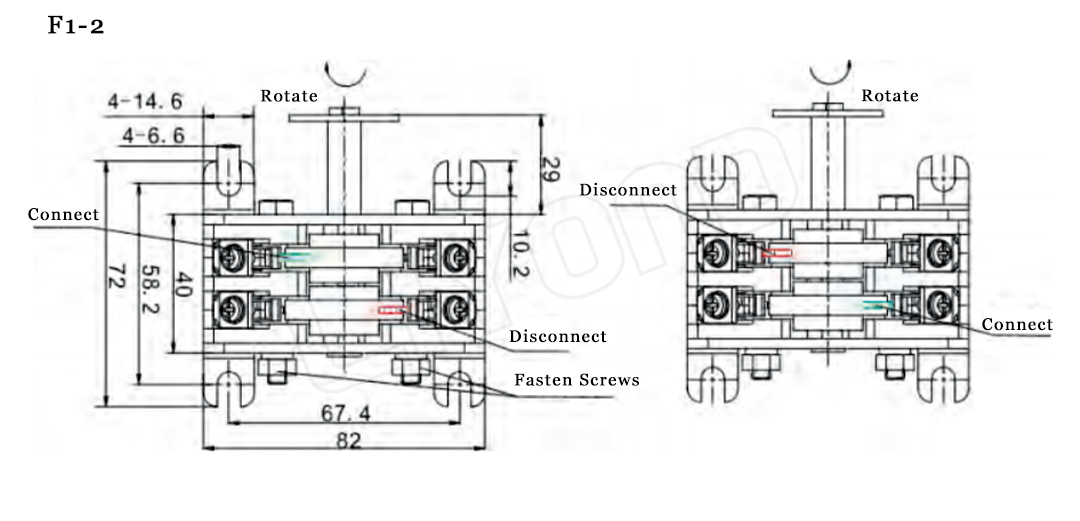

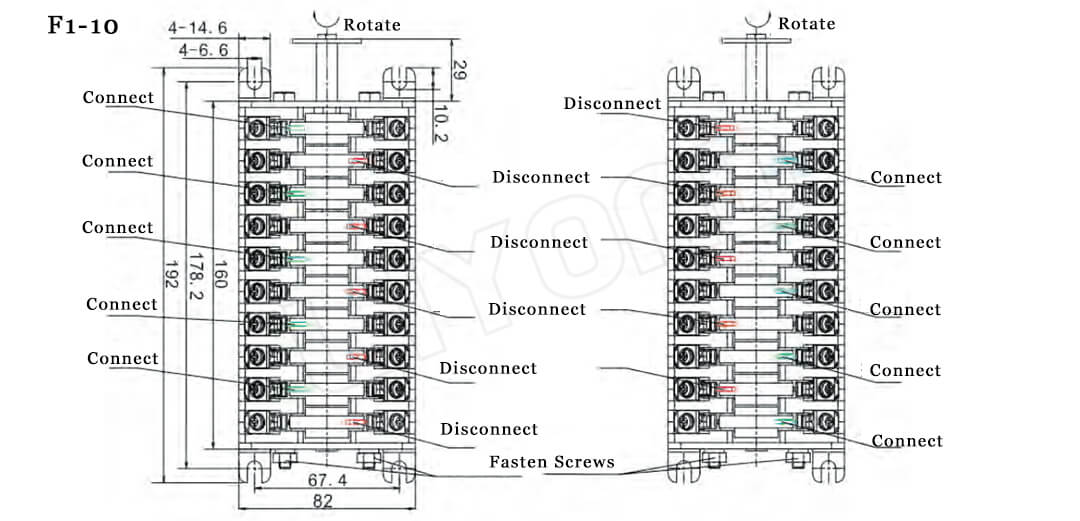

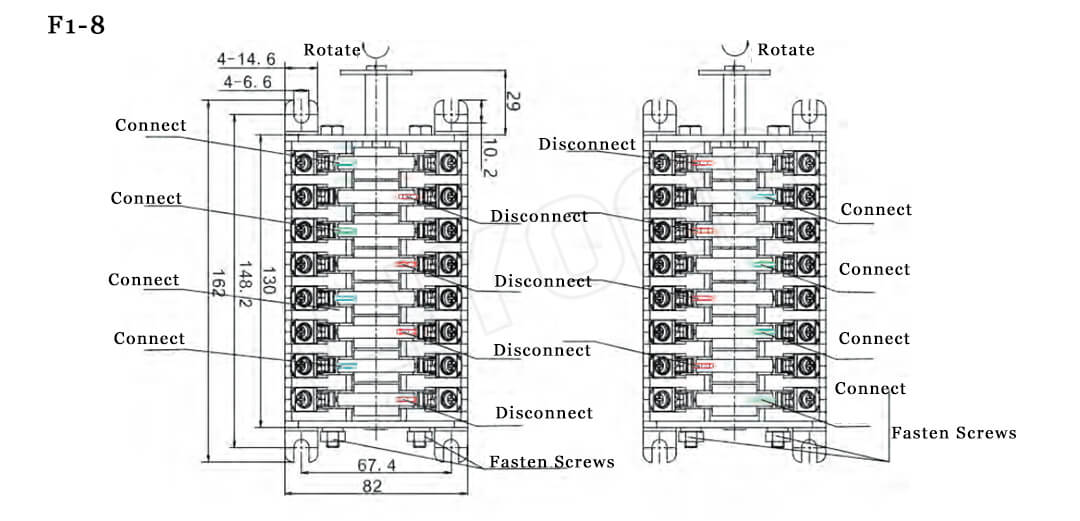

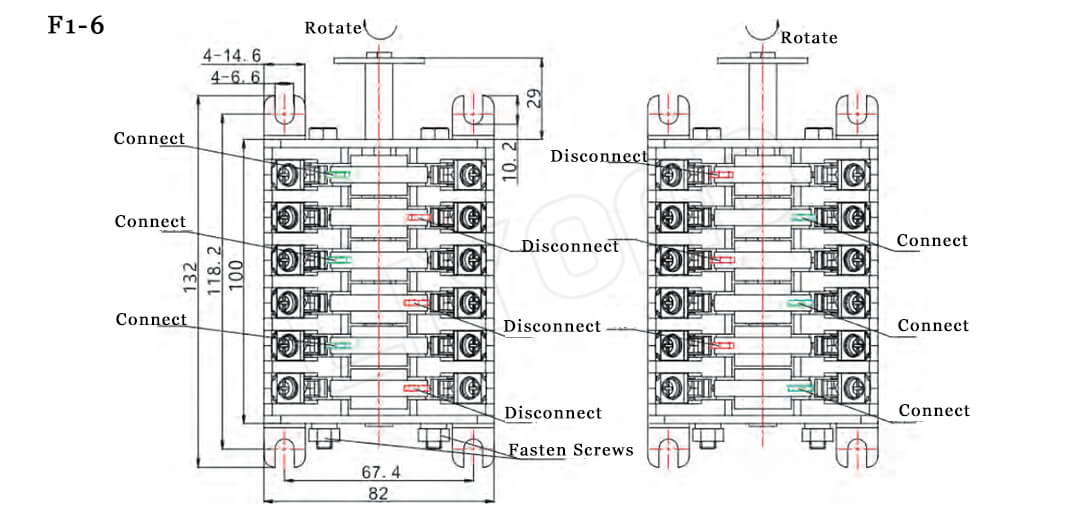

Note: Red represents open type, green represents closed type (red is connected when closed, green is connected when open)
1 Product name, model, quantity
2 Indicate the number of contact pairs and switch sections, type and installation method
3 Whether to use connection accessories
4 If the user has other special requirements, please specify
