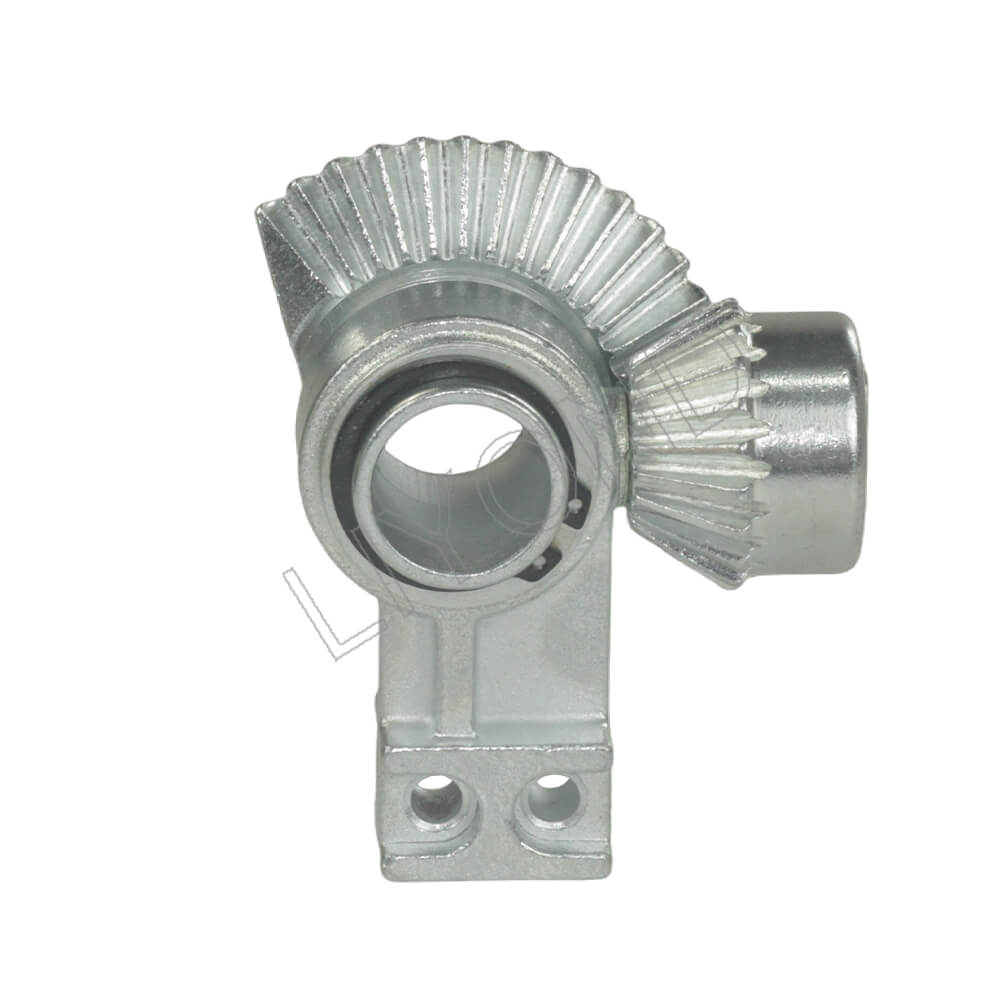

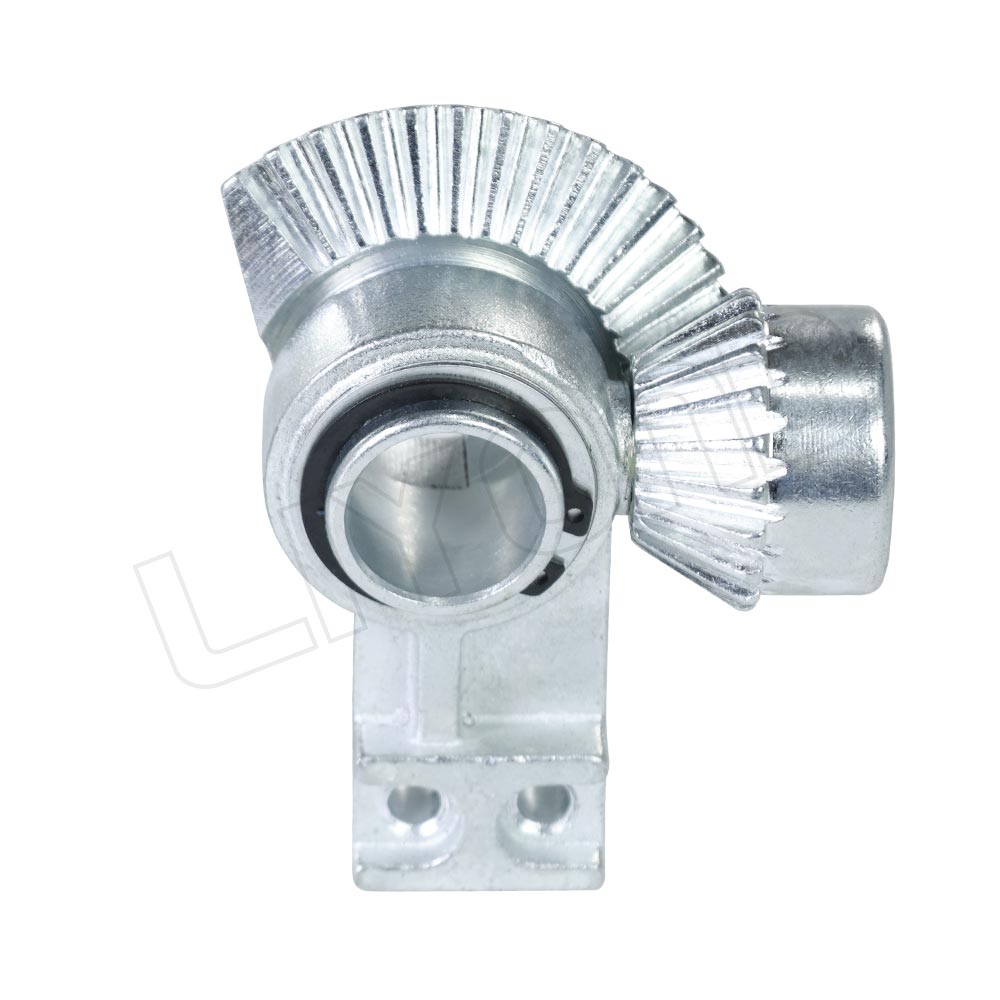

Bevel Gear Earthing Switch Operating Mechanism Interlock Device

Model: 5XS.245.001/002

Description

Earthing Switch Operation Mechanism Interlock Device of High Voltage Switchgear by Zincing (Operated by Bevel Gear Mechanism)
  • Overview
  • Drawing

Bevel gears play a key role in earthing switches. A grounding switch is a device used in power systems, especially in high-voltage equipment, to ground equipment or circuits. The operation of earthing switches often requires high reliability and precision, and bevel gears provide an efficient mechanical transmission method so that the switch can be opened or closed accurately when needed.

Features

1.Material: iron and zincing
2.Function: Used in the switchgear, it can worked in the switch interlock apparatus.
3.More details: It can match with the JN15 series earthing switch with the voltage of 12kV, 24kV etc.

bevel gear drawing

Installation Diagram

bevelgear (1).png
