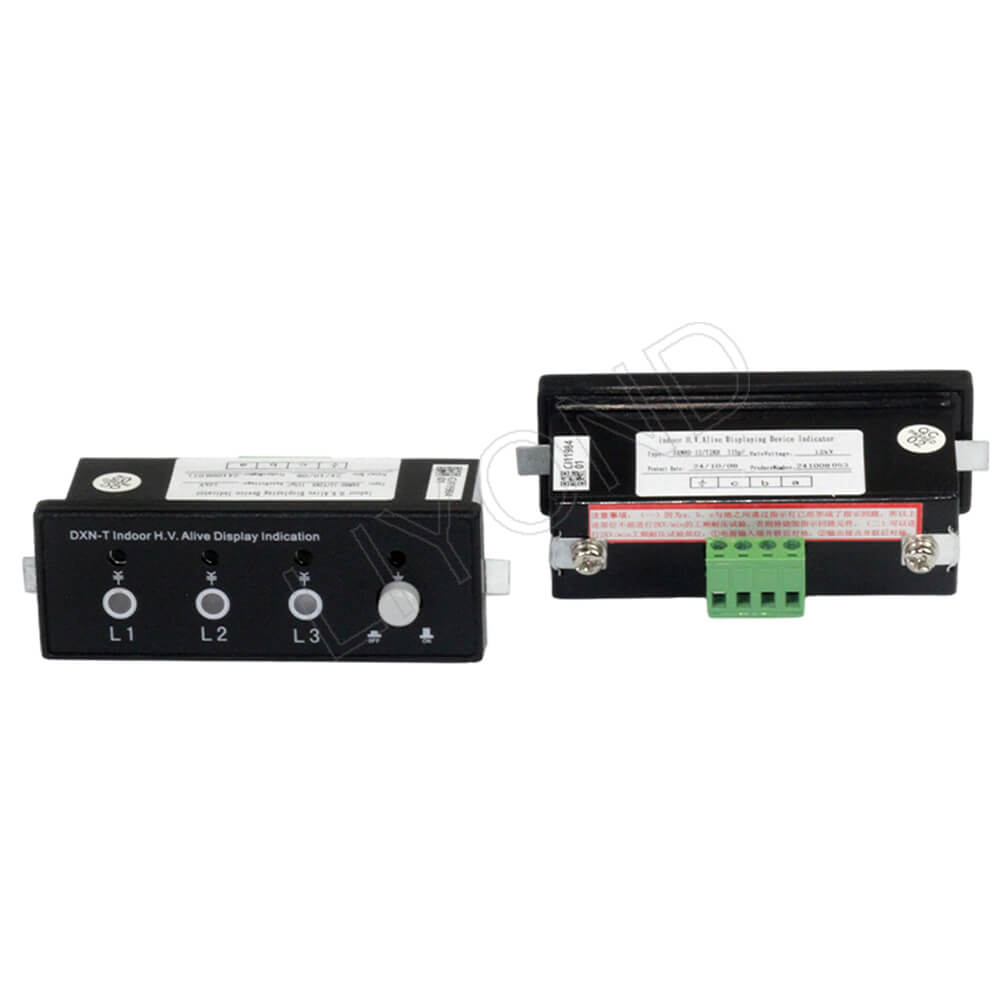

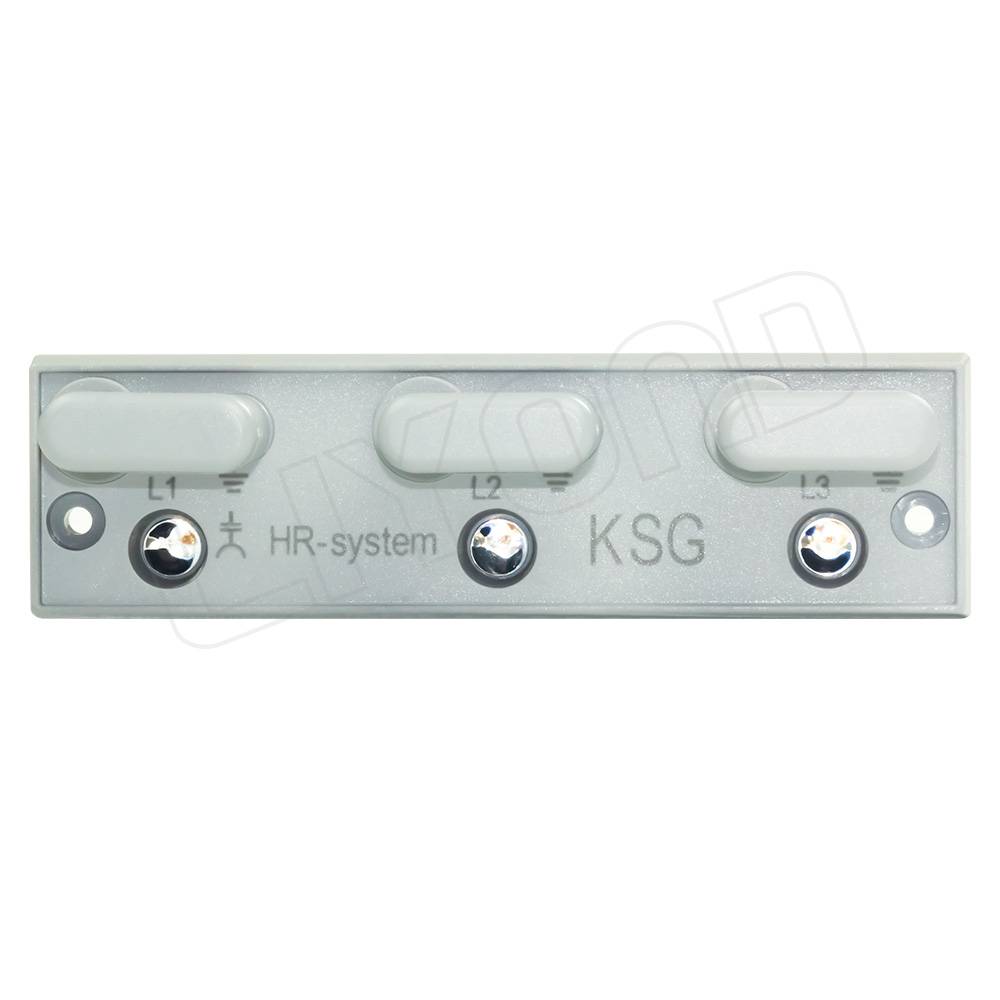

This product is a voltage indicator designed by our company according to user needs. The internal circuit adopts low-power light-emitting elements, which makes the power consumption of the whole machine low, the performance is more stable, and the reliability is higher. In order to facilitate the user’s on-site dual-circuit phase inspection, the phase test terminal can be set on the indicator panel, which is widely used in indoor high-voltage
electrical equipment with 3.6, 7.2, 12, 24, 40.5kV and frequency of 50Hz. It reflects the high-voltage live condition, and is matched with isolating switch and grounding switch, and can also improve the error-proof performance of the supporting products.
Normal working conditions
1.Ambient temperature: the upper limit should not exceed +40°C, the lower limit should not be lower than -25°C, and the special area should not be lower than -35°C
2.Altitude: The altitude of the installation area is not higher than 1000m
3.Atmospheric conditions: the daily average relative humidity of the air is not more than 95%,
4.The monthly average value is not more than 90%; the daily average value of water vapor pressure is not more than 2.2kPa, and the monthly average value is not more than 1.8kPa
5.Environmental conditions: no obvious pollution, no flammable, explosive chemical corrosion and salt spray places
voltage indicator adaptation capacitance parameter table:
| Model No. | Light-emitting element | Installation hole dimensions (mm×mm) |
Dimensions and mounting hole dimensions |
Rear view connection diagram |
Phase voltage for testing phase conformity （V） |
Phase voltage for testing phase discrepancy（V） |
||
| Type | Working voltage（V） |
Effective life（h） |
||||||
| DXN8D-7.2-40.5/T2 | Super bright light-emitting diode |
<DC2.5 | >30000 | 78*32 | Pic 1 | Pic 2 | <30 | >80 |
| DXN8D-7.2-40.5/T2K | ||||||||
Voltage Indicator Adaptation Capacitance Parameter Table:
| Rated voltage （kV） |
3.6 | 7.2 | 12 | 24 | 40.5 |
| Adaptive capacitance(pF) |
180(±15) | 150(±15) | 115(±15) | 80(±15) | 45(±15) |

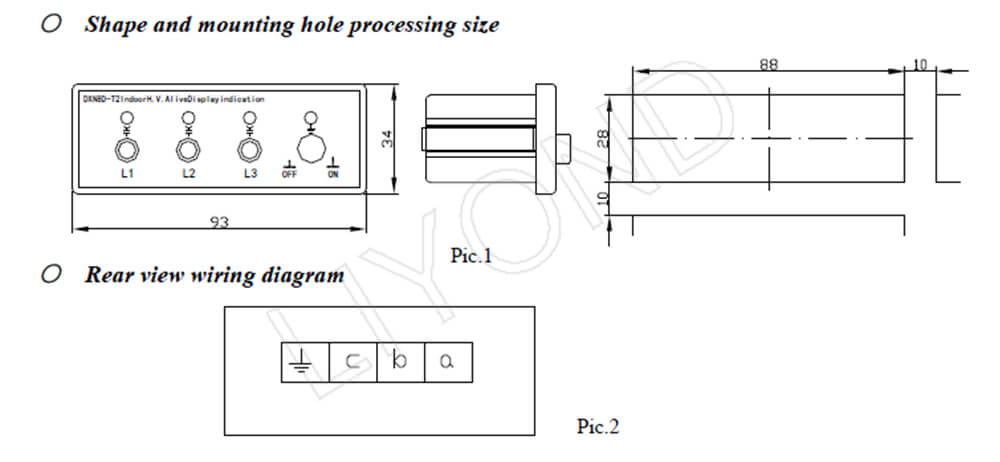

Appearance and mounting hole processing dimensions
