24kV Outdoor High-voltage Intelligent Three Phase Pole Mounted Vacuum Circuit Breaker Auto Recloser

ZW32-24 outdoor AC high-voltage vacuum circuit breaker (hereinafter referred to as circuit breaker) is rated voltage of 24kV, 50Hz three-phase AC outdoor power distribution equipment. It is mainly used to open and close the load current, overload current and short circuit current in the power system. Overload current and short-circuit current. Suitable for substations and industrial and mining enterprises in the distribution system for protection and control purposes, more It is suitable for the rural grid and the place of frequent operation.

Working conditions

1. Altitude 1000m;
2. The ambient air temperature is 45°C~+65°C; the daily temperature difference is 25°C;
3. The wind speed is not greater than 35m/s;
4. The earthquake intensity does not exceed 8 degrees;
5. Pollution level: Level IV;
6. Installation place: No flammable, dry explosion hazard, chemical corrosion place.

1. The circuit breaker adopts a three-phase pillar structure, which has the characteristics of breaking performance, stability and reliability, no danger of combustion and explosion, maintenance-free, small size, light weight and long service life.
2. The circuit breaker adopts a fully enclosed structure with good sealing performance, which helps to improve moisture-proof and anti-condensation performance, and is especially suitable for use in severe cold or humid areas.
3. Three-phase pillars and current transformers are insulated by imported outdoor epoxy resin solids, which have the characteristics of high and low temperature resistance, ultraviolet resistance and aging resistance.
4. The operating mechanism adopts a miniaturized pop-up operating mechanism, which has low energy consumption for opening and closing; the mechanism transmission adopts direct transmission mode, with fewer opening and closing parts and high reliability. The operating mechanism is in a sealed mechanism box, which solves the problem of mechanism corrosion and improves the reliability of the mechanism.
5. The opening and closing operations of the circuit breaker can be operated manually or electrically or remotely. It can be matched with the controller to realize power distribution automation, and can also be combined with the recloser controller to form a recloser.
6. The circuit breaker can be equipped with two-phase or three-phase CT for automatic over-current tripping protection and intelligent control for information analysis. .
7. The circuit breaker can be equipped with isolating switch and three-phase linkage. There is an obvious visible fracture when the isolating switch is in the off state, and it has an anti-mistake interlock with the circuit breaker body. It can be connected with a surge arrester post insulator for easy and safe maintenance.

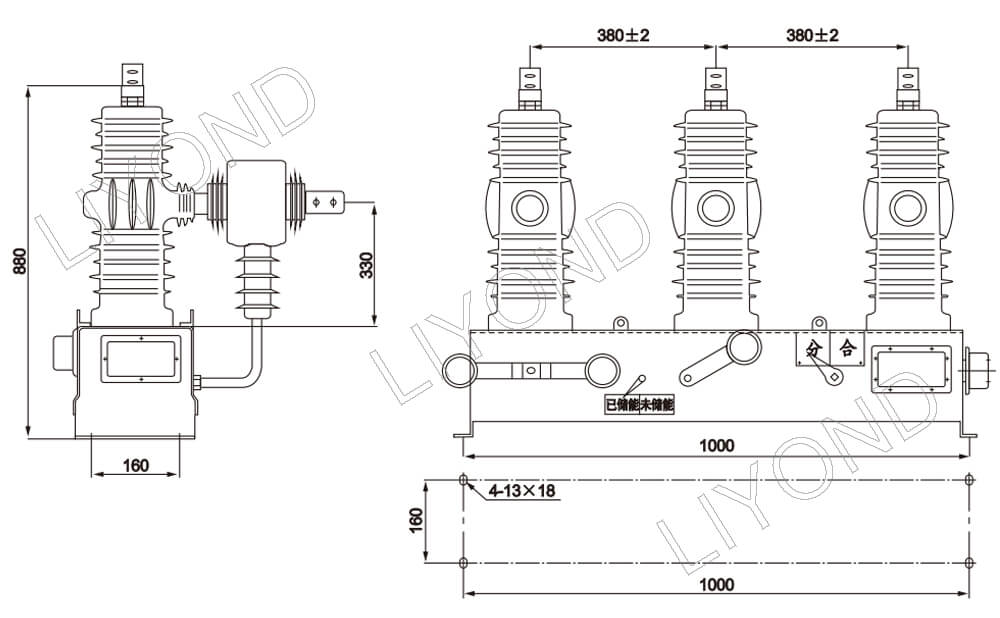

ZW32-24 Dimensions Reference

When ordering, please specify the product type, name, quantity, rated current, rated short-circuit breaking current, current ratio of the current transformer, operation mode and operating voltage, etc.
